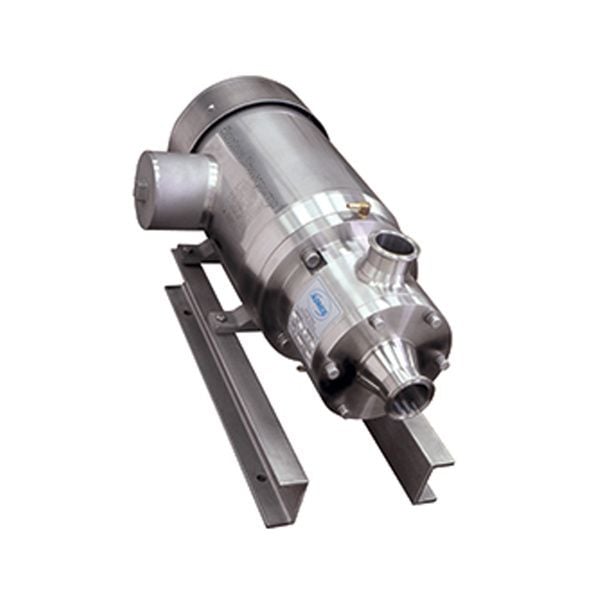

Boston Shearpump

The Boston Shearpump® is comparable to other shear pumps with the distinct advantage of substantially higher throughput and moderate to high shear rates, all provided within a 3-A TPV (#36-01) compliant, easy-to-clean-in-place design. The Boston Shearpump® is ideal for mixing solids or powders into viscous liquids that typical high-shear mixers cannot handle.

It is excellent for special mixing requirements where “texturizing” of high solids is needed, such as refried beans, cream cheese, salsa, processed cheese slices, mashed potatoes, pharmaceutical preps, polymers, detergents, and more. Where conventional shear pumps are only capable of 30 GPM, the Boston Shearpump® is available in models for a flow range from 10–150 GPM.

Boston Shearpump® Highlights:

• Standard shear head grades include coarse, medium, and fine.
• Special purpose heads available for texturizing and blending without damaging or altering solids and desired consistency.
• Model BSP24C standard with 7.5 HP motor, a 2” inlet and outlet, 10–30 GPM flow range, and our exclusive single mechanical quench seal rated for 700 psi.
• Model 60C standard with a 25 HP motor, a 3” inlet / 2” outlet, 30–150 GPM flow range, and our exclusive single mechanical quench seal rated for 700 psi.
