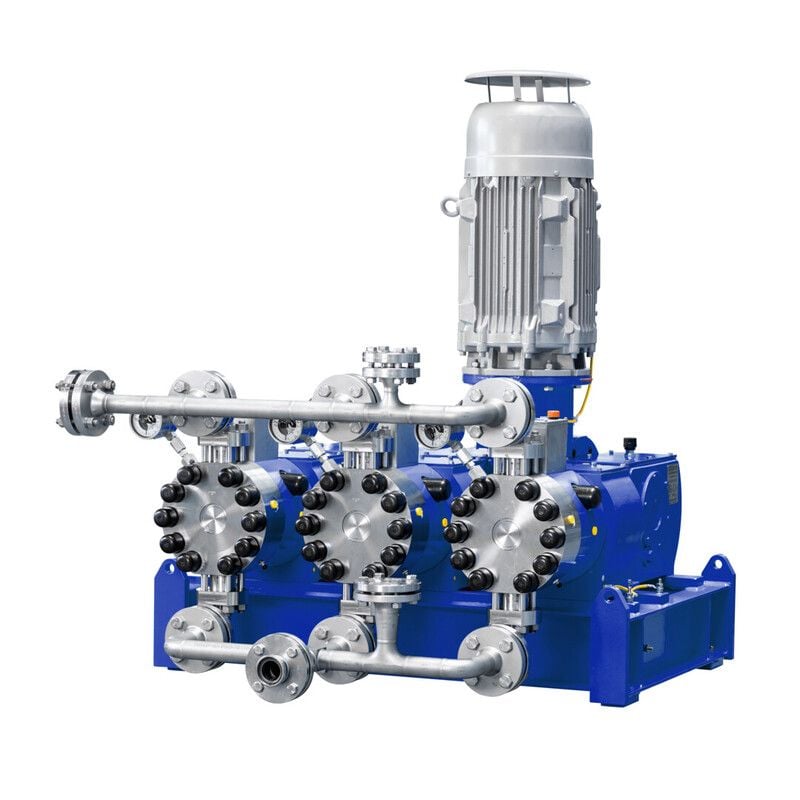

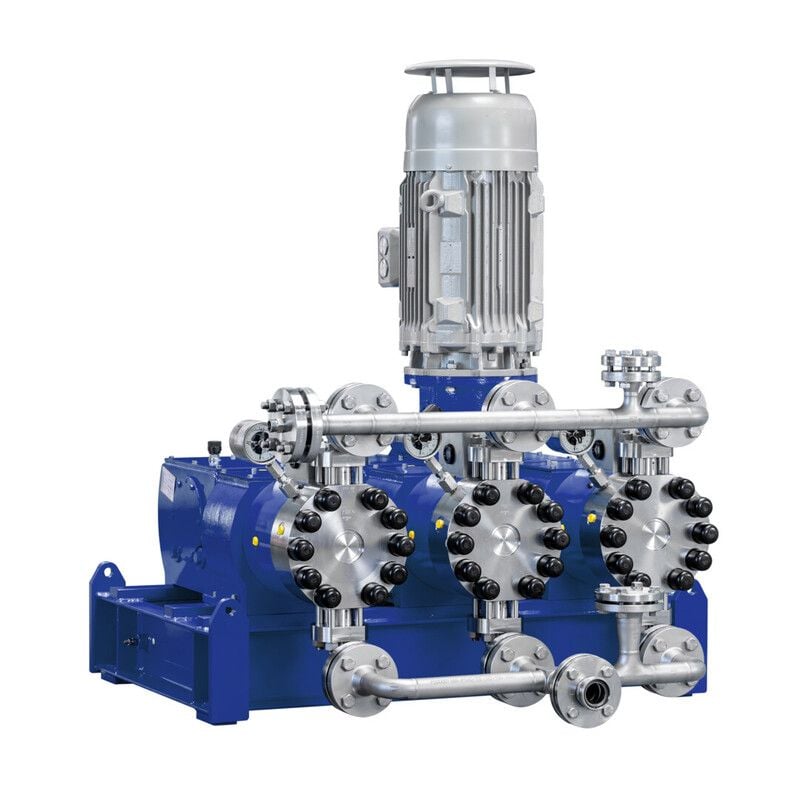

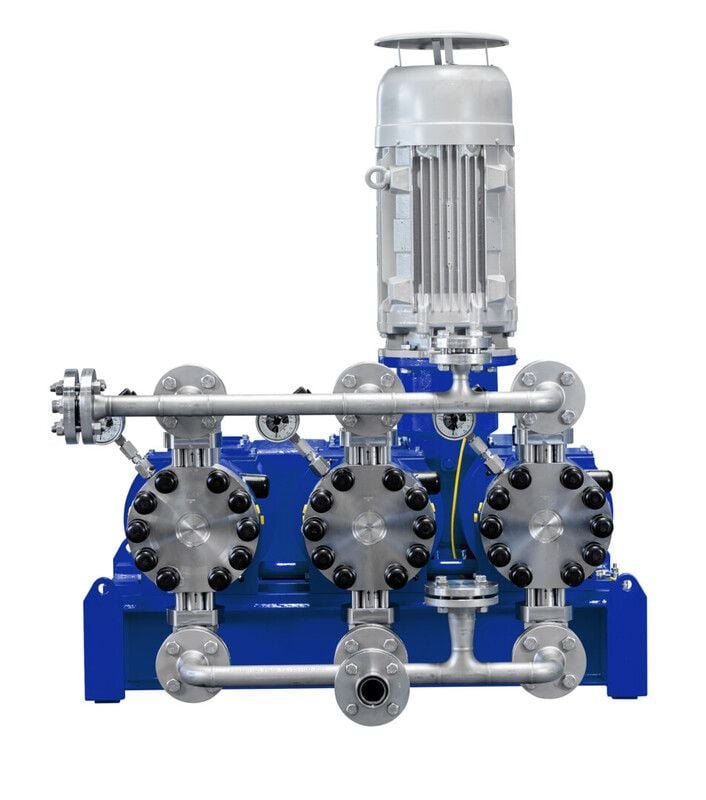

NOVAPLEX Integral Process Diaphragm Pumps

NOVAPLEX Integral Process Pumps

Overview

NOVAPLEX Integral pumps are powerful process diaphragm pumps designed for demanding high-pressure applications where standard metering pump capabilities fall short.

Key Features

Diaphragm and Pump Head Design

• Double diaphragm pumpheads with:
  • Positive diaphragm position control
  • Built-in pressure relief valve
  • Diaphragm failure indication

Crank Gear System

• Integrated lubrication system
• Anti-friction bearings

Structural and Operational Advantages

• Modular concept
• Integrated gear reducer
• Minimized footprint
• Compact design

Reasons to Choose NOVAPLEX Integral

Performance and Efficiency

• Excellent emission control
• High reliability under critical conditions
• Quiet operation via 4- or 6-pole motors
• Reduced life cycle cost

Key Applications

NOVAPLEX Vector Pumps are ideal for toxic or chemically aggressive liquids and for slurries/suspensions with particle sizes up to 100 µm.

Fluids pumped (Examples)

• • Ammonia
  • Butane
  • Hydrocarbon Condensate
  • Latex emulsion
  • Liquified CO2
  • LPG (Liquified Petroleum Gas)
  • Methanol
  • Glycol
  • Naphtha
  • Raney Nickel Suspension
  • Sulphuric Acid
  • Toluene
  • Enhanced Oil Recovery (EOR) - Polymer
  • Water

Pumped Duties (Examples)

• • Reactor feed pump
  • High pressure injection pump
  • Transfer pump
  • Re-circulation pump
