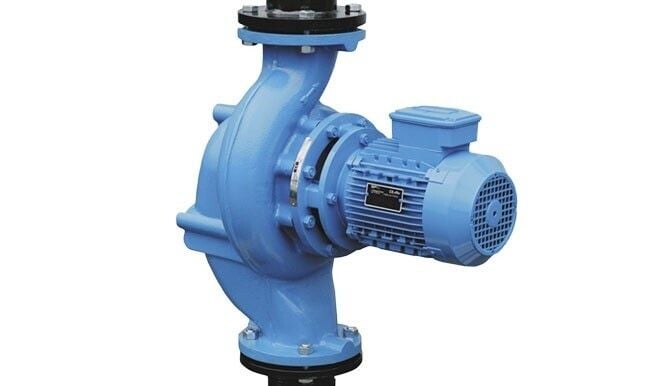

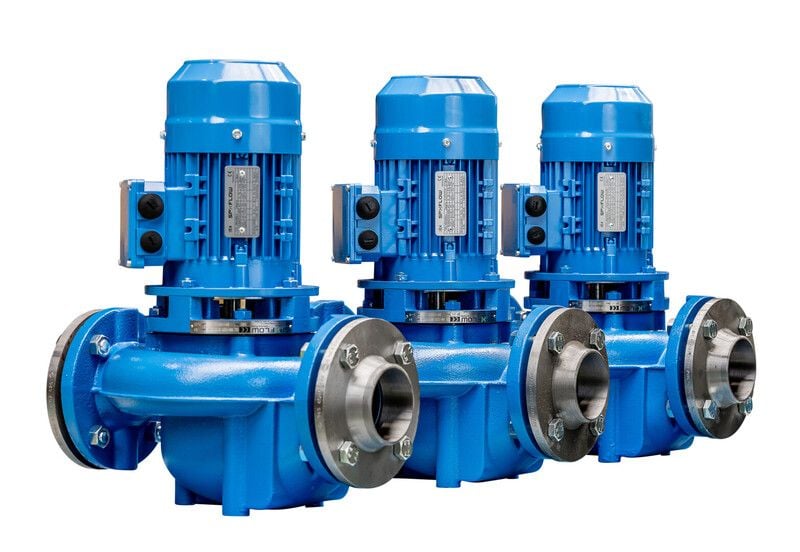

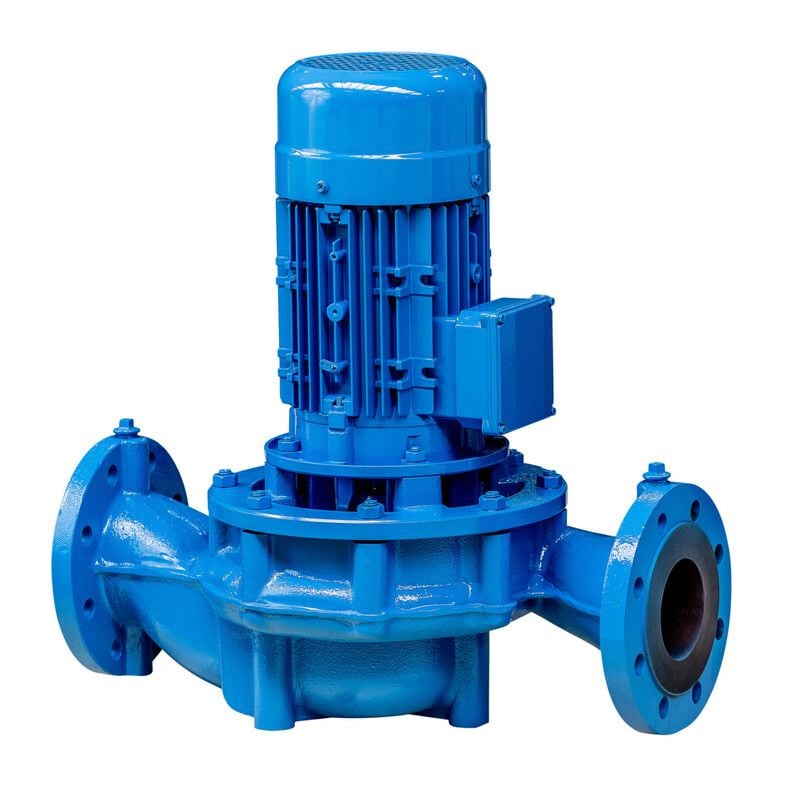

CombiLine - Centrifugal Pump with In-line Ports

In-Line Circulating Pump Overview

Dry Shaft and Mechanical Seal to EN 12756 (DIN 24690)

In-line circulating pump with dry, electric motor shaft and mechanical seal to EN 12756 (DIN 24690)

Key Features

• Compact, Economic, Space-Saving Construction

• Wide Range of Applications

• Outstanding Hydraulic Performance

• High Efficiency Impeller

• Closed Impeller with Axial Load Balancing Vanes

• Special Low NPSH Suction Inlet Casing

• Back-Pull-Out Design for Easy Maintenance

• Low Maintenance Cost

• Suitable for Vertical Arrangement

• Standard Mechanical Shaft Seal EN 12756 (DIN 24690)

• ATEX Certified

• CE Certified

Application Suitability

Fluid Compatibility and Installation

Suitable for Clean, slightly contaminated thin liquids in heating and cooling systems with in-line suction and delivery flanges for mounting without foundation
